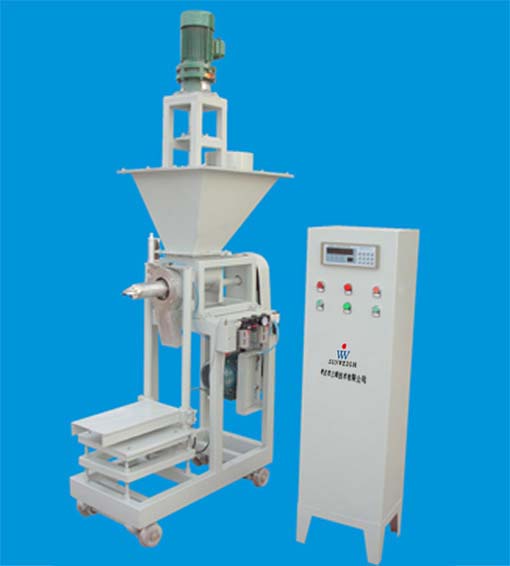

DCS-25LF valve port scale
|
|
 |
|
| 产品介绍： |
- This machine uses low-pressure air feeding combine with screw feeding, suitable for various micro powder or ultrafine powder materials that is of small bulk density and strong air affinity, such as various types of synthetic resin powder, pigment powder, carbon black, alumina, titanium dioxide and other materials’ automatic metering packaging.
- It is new electromechanical equipment and uses high-resolution weighing controller, high-precision sensor and other advanced technologies and devices. It adopts a filling method with two flow control; it has a high weighing speed and accuracy to make a free-dust environment.
- QLF series packing scale is equipped with advanced dust collection device, it is used for the packaging of micro powder and ultrafine powder and can make the environment clean and dust-free.
-
Technical parameters：
|
Weighing range |
kg/bag |
5-50 |
|
Packaging capacity |
bag/h |
100-300 |
|
Weighing precision |
|
0.2% |
|
Bag type |
|
Valve bag |
|
Controlling gas source |
Pressure: Mpa |
0.5-0.6 |
|
Gas source |
Consumption: Nm³/bag |
0.07 |
|
Strong flow gas source |
Pressure: Mpa |
0.02-0.04 |
|
Gas source |
Consumption: Nm³/bag |
0.1-0.12 |
|
Power supply |
Voltage (V) |
380±10% |
|
Frequency (Hz) |
50±5% |
|
Power (Kw) |
2.2 |
|
Dust collection |
|
0.2m³/s |
|
Weight |
kg |
About 500 | |
|
|
